Mechanical Action Parts - Standard Components
| Product Overview | Standard Parts | Custom Parts | Resources |
Manual Ends.
 |
 |
 |
 |
| 4001-0.8/1.6 or 1.8 | 4001-1.3/1.6 or 1.8 | 4003A/0.8 | 4003A/1.3 |
| Stock No. | Part Reference | Description |
|---|---|---|
| MP120 | 4001-0.8/1.6 | Manual wire end 0.8mm slot drilled 1.6mm |
| MP125 | 4001-0.8/1.8 | Manual wire end 0.8mm slot drilled 1.8mm |
| MP130 | 4001-1.3/1.6 | Manual wire end 1.3mm slot drilled 1.6mm |
| MP135 | 4001-1.3/1.8 | Manual wire end 1.3mm slot drilled 1.8mm |
| MP240 | 4003A/0.8 | Manual end with 0.8 slot collet end 2.5 ID with M3x3 Allen hd grub screw. Currently No Stock Available |
| MP245 | 4003A/1.3 | Manual end with 1.3 slot collet end 2.5 ID with M3x3 Allen hd grub screw. Currently No Stock Available |
 |
 |
 |
 |
| 4003/0.8 | 4003/1.3 | 4003B | 4003C |
| Stock No. | Part Reference | Description |
|---|---|---|
| MP220 | 4003/0.8 | Manual clip end 0.8mm slot |
| MP225 | 4003/1.3 | Manual clip end 1.3mm slot |
| MP230 | 4003C | Manual clip end with collet end 2.5 ID with M3x3 Allen hd grub screw. Currently No Stock Available |
| MP235 | 4003B | Manual clip end with blank end |
Pedal Ends.
 |
 |
 |
 |
| 4002-1.8/1.6 or 1.8 | 4004A/C | 4004/1.8 | 4004C |
| Stock No. | Part Reference | Description |
|---|---|---|
| MP180 | 4002-1.8/1.6 | Pedal wire end 1.8mm slot drilled 1.6mm |
| MP185 | 4002-1.8/1.8 | Pedal wire end 1.8mm slot drilled 1.8mm |
| MP350 | 4004A/C | Pedal end with 1.8 slot collet end 2.5 ID with M3x3 Allen head grub screw. Currently No Stock Available |
| MP320 | 4004/1.8 | Pedal clip end 1.8mm slot |
| MP330 | 4004B | Pedal clip end with blank end |
| MP340 | 4004C | Pedal clip end collet end 2.5 ID with M3x3 Allen head grub screw. Currently No Stock Available |
Roller Board Parts.
| Stock No. | Part Reference | Description |
|---|---|---|

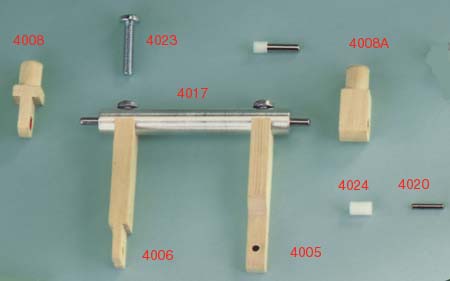

| MP425 | 4005-50 | 50mm Wire End Roller Arm |
| MP445 | 4006-50 | 50mm Clip End Roller Arm |
| MP610 | 4008 | Roller Stud 8mm dia x 10mm long spigot with red cloth bushing |
| MP620 | 4008A | Roller Stud type A 8mm dia x 10mm long spigot with red cloth bushing |
| 4017 | 10mm diameter aluminium bar 3000mm lengths | |
| MP922 | 4020 | 3mm diameter x 17.8mm axle |
| MP923 | 4021 | 3mm diameter x 25mm axle |
| MP925 | 4023 | M4 x 20mm posi head zinc plated and passivated screw |
| MP930 | 4024 | 4mm OD x 3mm ID plastic insert |
| Stock No. | Part Reference | Description |
|---|---|---|

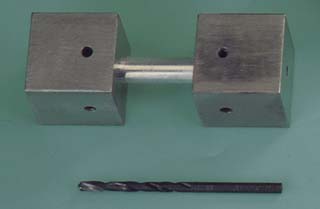

| MP950 | 4050 | Roller Drilling Jigs (in pairs) |
| MP951 | 4051 | 3.9mm Drill |
Squares.
 |
 |
 |
| 4009 | 4010 | 4011 |
| Stock No. | Part Reference | Description |
|---|---|---|
| MP515 | 4007 | Stepped bracket drilled with 2 no. 3mm diameter holes |
| MP525 | 4007A | Bracket type A drilled with 2 no. 3mm diameter holes |
| MP728 | 4009-50/50 | Wire End Squares 50/50mm arms complete with stepped bracket |
| MP738 | 4009-60/60 | Wire End Squares 60/60mm arms complete with stepped bracket |
| MP758 | 4010-50/50 | Clip End Squares 50/50mm arms complete with stepped bracket |
| MP768 | 4010-60/60 | Clip End Squares 60/60mm arms complete with stepped bracket |
| MP770 | 4011-50/50 | Wire/Clip End Squares 50/50mm arms complete with stepped bracket |
| MP780 | 4011-60/60 | Wire/Clip End Squares 60/60mm arms complete with stepped bracket |
Pendula.
 |
 |
 |
| 4029 | 4030 | 4003J |
| Stock No. | Part Reference | Description |
|---|---|---|
| MP820 | 4029 | Double Clip Pendulum complete with stepped bracket |
| MP825 | 4030 | Single Clip Pendulum complete with stepped bracket |
| 4003J | Manual Clip End Joiner - use with Single Pendulum |
Metal Parts.
 |
 |
 |
| 4012 | 4013 | 4014 |
| Stock No. | Part Reference | Description |
|---|---|---|
| 4012 | 2mm wire tapped 1 end. 85mm long, 12mm thread. | |
| 4013 | 1.6mm wire tapped 2 ends. Limited Stock Available |
|
| MP900 | 4014 | 2mm phosphor bronze tapped hook. Limited Stock Available |
 |
 |
 |
 |
| 4015 | 4016 | 4027 | 4028 |
| Stock No. | Part Reference | Description |
|---|---|---|
| MP910 | 4015 | Fixed aluminium collet 8mm OD with M3 x 3mm allen head grub screw. |
| MP911 | 4016 | Adjustable aluminium collet 8mm OD with M3 x 3mm allen head grub screw. Currently No Stock Available |
| MP914 | 4027 | Aluminium wire coupler 8mm OD with M3 x 3mm allen head grub screw. |
| MP916 | 4028 | 10mm OD flanged aluminium collet with M3 x 3mm allen head grub screw. |
 |
 |
| 4031 Brass Pull Down Seal This part is now discontinued |
4032 Brass Pull Down Seal Limited Stock Available |
Pedal Jacks.
| Stock No. | Part Reference | Description |
|---|---|---|

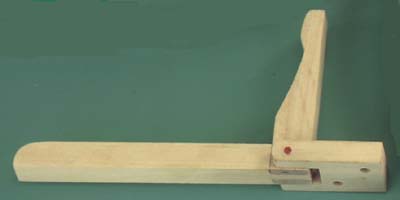

| MP820 | 4095 | Pedal Jack (no drilling) |
Miscellaneous Parts.
 |
|
| 4090 | 4034 |
| Stock No. | Part Reference | Description |
|---|---|---|
| 4090 | Mechanical Action Display | |

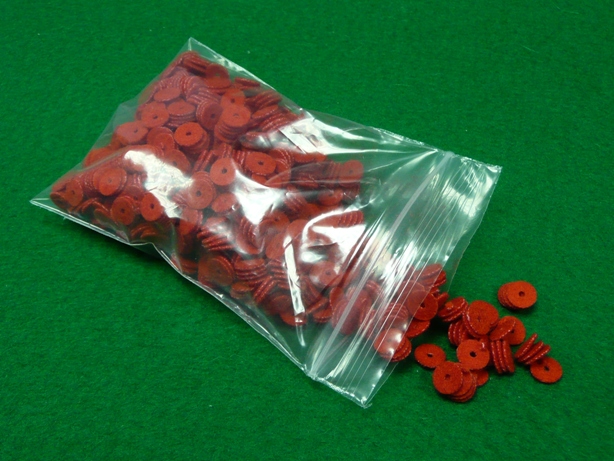

| MP941 | 4034 | Red Cloth Washers 8.5mm OD Available in bags of 1000 |
